Specification
Model |
SP5643V |
Video Sensor |
1/3" Progressive Scan CMOS |
Effective Pixels |
2688(H) x 1520(V) |
S/N Ratio |
>50dB |
Video Lens |
f=2.7~12mm(Distance up to 40m)
F=1.6 Motorized |
FOV |
99.2 º(Wide); 31.3 º (Tele) |
Shutter Speed |
1~1/10000 Sec. |
Video Compression |
H.264/MJPEG |
Video Streaming |
Dual Streams:(note:1of the 2M or under streamings can be MJPEG)
-Normal mode:
3M@25/30fps+SVGA@25/30fps, 4M@15fps+XGA @25/30fps
-HDR Mode:
1080p@25/30fps+D1@25/30fps
Quad Streams:
-Normal Mode:
H.264 3M (2304x1296) @25/30 fps + H.264 VGA@25/30
fps +H.264 CIF@25/30 fps + H.264 CIF @25/30 fps
-HDR Mode:
H.264 1080p @25/30 fps + H.264 SVGA@15 fps +
H.264CIF@15 fps + H.264 CIF@15 fps |
Video Resolution |
H.264 - 4M/3M/Full HD 1080P/SXGA/HD720P/ XGA/ SVGA/D1/VGA/CIF
MJPEG-Full HD 1080P/SXGA/HD720P/ XGA/ SVGA/D1/VGA/CIF |
Image Setting |
Brightness/Sharpness/Contrast
/Saturation/Hue/Exposure/White Balance/Backlight Compensation/WDR(Shutter WDR On/Off (120dB))/Noise Reduction(3DNR / 2DNR / ColorNR)/Motion detection/Tampering Alarm/Privacy Mask/Digital Zoom/IRIS Control |
LAN |
10/100M |
Protocol |
IPv4/v6, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP,
PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF |
Power Source |
PoE (802.3af) /DC 12V/AC 24V |
Power Consumption |
DC 12V: 3W / AC 24V: 2.8W /
PoE: 2.6W(Operation 802.3af system) |
Dimensions (mm) |
90 x 270 mm (. 3.3 x 7.6 in.) |
Weight |
840g |
Certification |
CE, FCC, RoHS |
Ordering Information

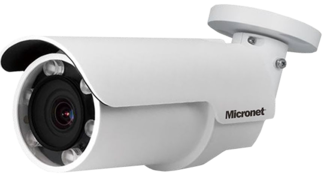

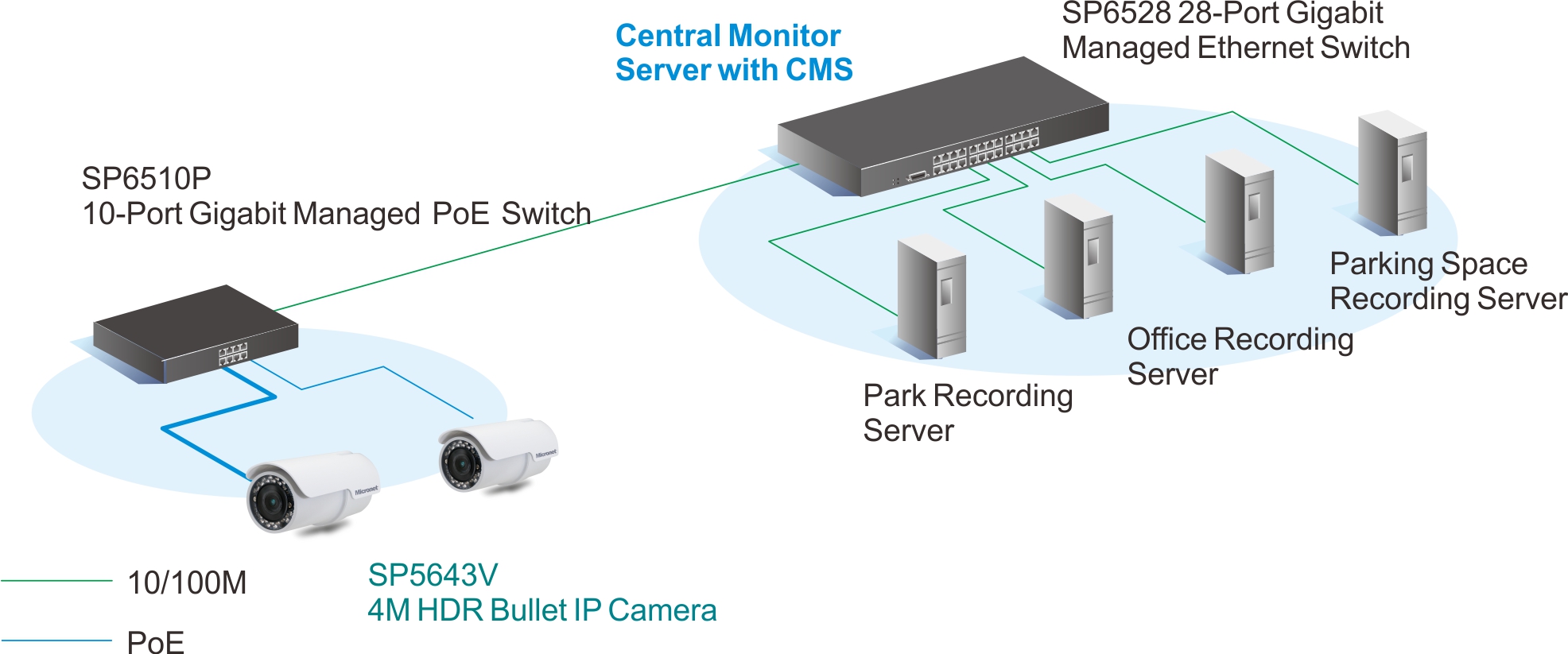

SP5643V: 4M HDR Bullet IP Camera
4 Megapixel Bullet Camera
Hardware |
|
Megapixel |
4MP |
Night Vision (IR) |
Yes |
Night Vision Range (m) |
40 |
Field of View |
99.2 º(Wide); 31.3 º (Tele) |
Focal Length (mm) |
Motorized, f=2.7~12mm |
Feature |
|
Iris Control |
P-iris |
Day/Night |
Yes |
Video Compression |
H.264 (MPEG-4 Part 10/AVC) / MJPEG |
Wide Dynamic Range (WDR) |
Yes(120dB) |
Power Source |
PoE/DC 12V/AC 24V |
Digital In/Out |
1/1 |
Audio |
Yes |
RS485 |
Yes |
Memory Card Slot |
microSDSC 64GB support |
Weather Proof |
IP67 |
Onvif |
Yes |
