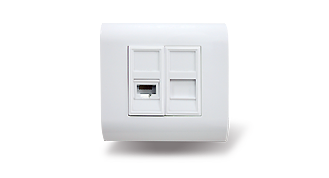

Wall Socket

Micronet SP1162S-2 Wall Socket serves as the work area endpoints for horizontal cable runs. Using the information outlets or telecommunications outlets helps you organize your cables. The modularity provided by information outlets saves you a significant amount of cable and accommodate all the possible computer locations within a client´s work area.

Overview

Compliant with Enhanced Category 6 standard, suitable for Gigabit application
The new version 110D terminal block can be used for 110 or Krone punch down tools
The 110D IDC color codes combine two wirings of T568A & T568B for easy installation
Utilize Advanced Printed Circuit Board technology to balance signal transmission of insertion loss and cross talk from 1 to 100 MHz
45-degree jacks for putting less strain on patch cable
Error free performance

Specification

Model	SP1162S-2
Model	SP1162S-2
Category	Cat.6
No. of ports	2
No. of ports	Phosphor Bronze with 50 micro-inch nickel plated Contact area: Min. 30 mm 50 micro-inch gold plated
Terminal Block	110 & Krone tool compatible Used for 22-26 AWG stranded and solid wire Phosphor Bronze with 50 micro-inch tin-lead plated over 50-60 micro-inch nickel plated
Jack Bracket Set	ABS+PC, UL94V-0
Dimension, W x H x D	80 x 80 x 42 mm

Ordering Information

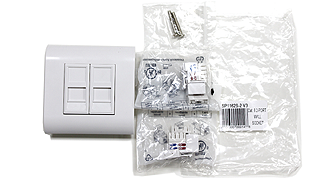

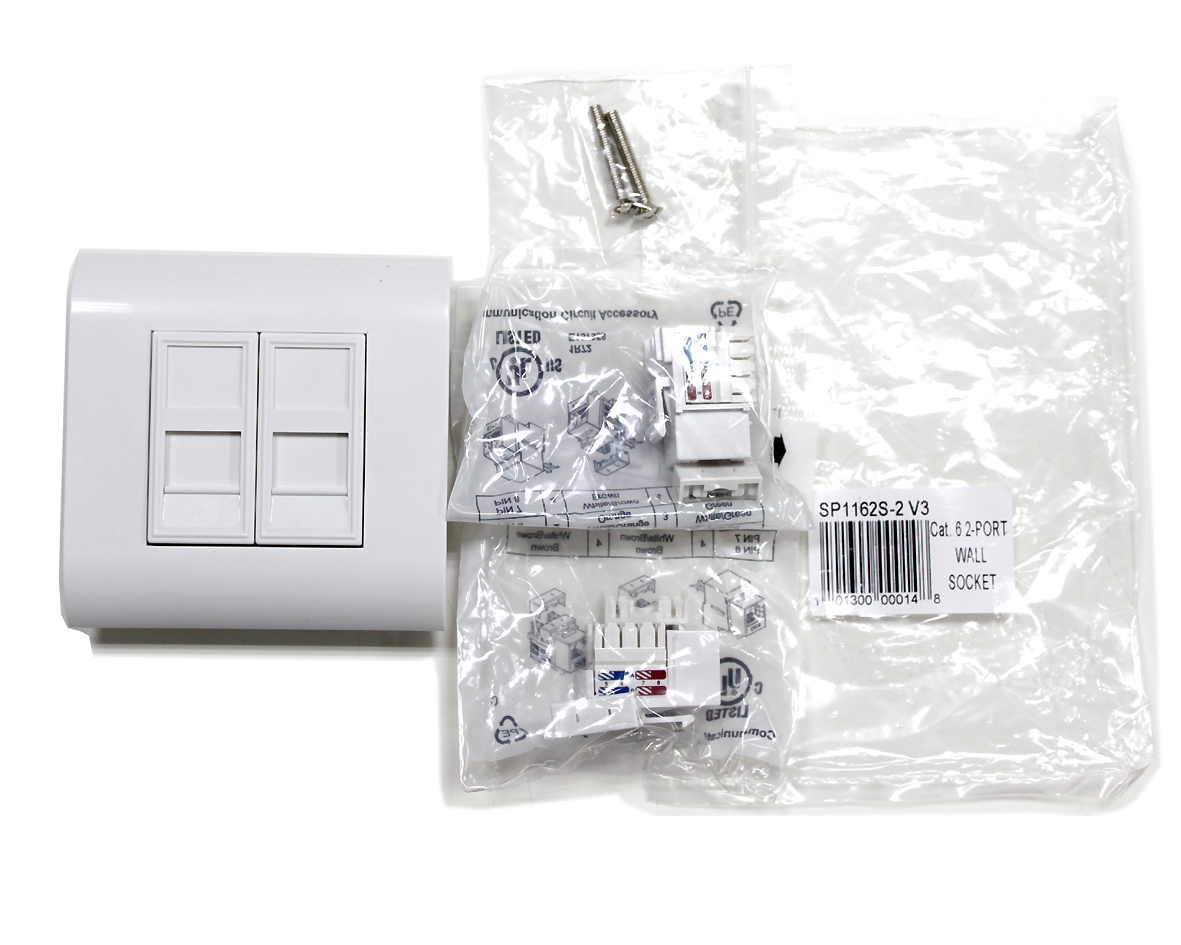

SP1162S-2: Cat.6 Wall Socket, 2 RJ-45 Ports, 45 degree
SP1163A: Surface Mounted Box
