26-Port Gigabit Managed PoE Switch, 370 Watts
26-Port Gigabit Managed PoE Switch, 370 Watts
Model No. SP6526P
  • Provide 24 IEEE 802.3af/ IEEE 802.3at PoE ports, totally power supply up to 370 Watts
  • Provide 2 SFP ports for switch uplink purpose
26-Port Gigabit Managed PoE Switch, 370 Watts
26-Port Gigabit Managed PoE Switch, 370 Watts
26-Port Gigabit Managed PoE Switch, 370 Watts
26-Port Gigabit Managed PoE Switch, 370 Watts
  • Overview
  • Specification
  • Application
  • Download
  • Family
  • FAQ

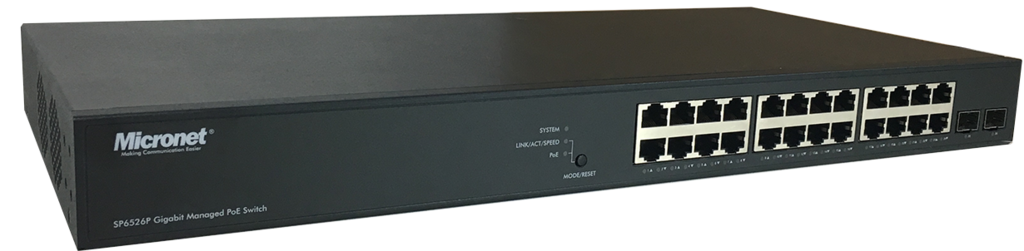

Micronet SP6526P is a 26-port managed PoE switch with 24-port 10/100/1000Mbps PoE and 2-port Gigabit SFP supporting fiber expansion. It is compliant with IEEE802.3af/at, featuring up to 30 watts per port and 370 Watts total PoE power to fulfill most of the demanding network camera and other IT/network applications. With its PoE features such as PoE scheduling, auto-checking, configuring, and power delay, it helps you utilize PoE power more efficiently, smartly, and maximizes the power usage.

For more secured and smooth network, SP6526P is equipped with a long list of layer 2 management and security features such as VLAN, link aggregation, QoS, DHCP client and snooping, secure shell, secure sockets layer, IPv6, and more. With these features, you will have quick deployment, smooth and safe network; giving your infrastructure expansion with more functionality, security, and manageability for different network applications.

Overview
  • Provide 370W Total PoE Power with 24 PoE ports IEEE802.3af/at
  • Support Protocol-based VLAN and IEEE 802.1Q VLAN feature to flexible network partition, configuration, and also improve network performance
  • Support Link Aggregation (IEEE 802.3ad) to increase bandwidth by automatically aggregate several links together
  • Support QoS (Port-based/IEEE 802.1p) feature to preserve network bandwidth and allow maximum control of network resources
  • Support IGMP Snooping and immediate leave features to prevent flooding of IP multicast traffic and limit bandwidth-intensive of video traffic
  • Support Spanning Tree Protocol (STP, IEEE 802.1d) and Reserve STP (RSTP) features to ensure faster recovery from failed links and enhance overall network reliability
  • Support DHCP client and snooping, port mirroring, and rate limiting features to enhance network security.
  • Support SNMP v1/v2/V3 feature to allow collecting network information by a network management station
  • Support Device Management System to facilitate installation, configuration, and troubleshooting
  • Allow Telnet, and IPv6 Web interface (both HTTP and HTTPS) access to enable administrators to monitor devices attached to switch ports in more detail
