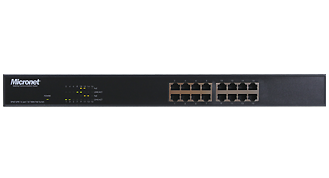

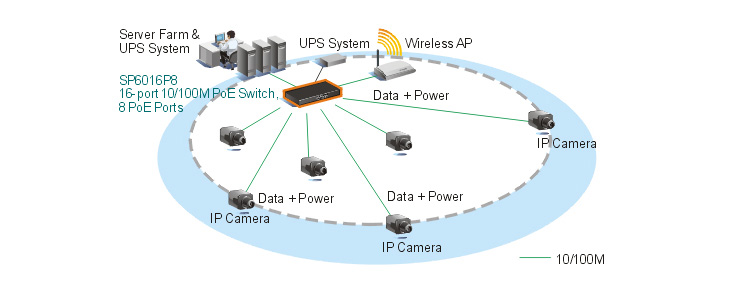

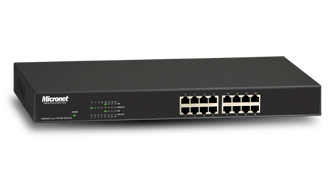

SP6016P8 supports IEEE 802.3af standard on 8 RJ-45 ports of 10/100M for Power over Ethernet (PoE) and is very suitable to the environments that demand for remote power feeding applications, such as video surveillance and wireless hotspots. With powered device sensing and power classification, it can detects the presence of 802.3af compliant devices, supplies power to different appliances, such as IP Camera, and Wireless AP, and enables a unified supply of data, voice, video and power over standard Cat.5 and above twisted pair cable.
Overview
- Supports IEEE 802.3af compliant
- Supports Power over Ethernet on 8 RJ-45 ports of 10/100M
- Full power 15.4 watts per port for 4 ports
- Smart feature for PD on/off, PD detection, and power level
- LED indicators for PoE activity
Specification
| Model |
SP6016P8 |
| Standard |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX IEEE 802.3af Power over Ethernet |
| Interface |

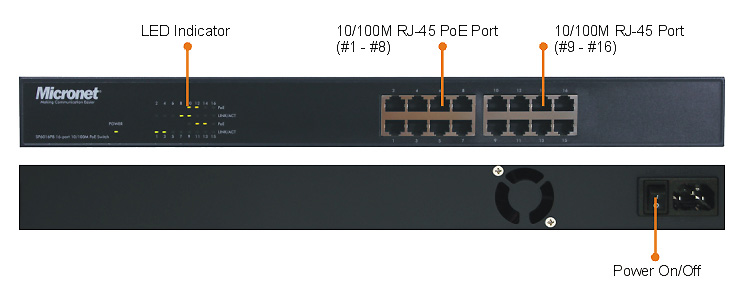

16 x 10/100M RJ-45 Ports
8 x 10/100M PoE Ports (#1 - #8) |
| MAC address |
4K entries |
| Hardware |
Buffer memory: 1.5MByte |
| Feature |
Support IEEE 802.3af compliant
Support Power over Ethernet on 8 RJ-45 ports of 10/100M
Full power 15.4 watts per port for 4 ports
Smart feature for PD on/off, PD detection, and power level
LED indicators for PoE activity |
| Environment |
Operating Temperature: 0 – 60 degree C
Storage Temperature: -20 – 90 degree C
Relative Humidity: 5 to 90% |
| Weight |
2.635kg |
| Power |
AC 100 – 240V, 50/60Hz |
| Dimension, W x D x H |
440 x 220 x 44 (mm) |
| Emission |
CE, FCC |
Ordering Information

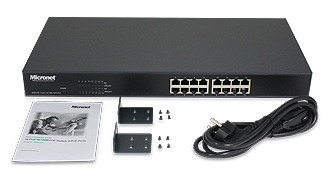

SP6016P8 16-Port 10/100M PoE Switch, 8 PoE Ports
Click browse answers to questions
Power-over-Ethernet (PoE) eliminates the need to run power to devices on a wired LAN. Using Power-over-Ethernet, installers need to run only a single CAT5/5e Ethernet cable that carries both power and data to each device. This allows greater flexibility and significantly decreases installation costs in many cases.
IEEE 802.3af standard-2003 ratified at June 12, 2003. Power over Ethernet/LAN
1. Transmits low power on the Cat. 5 or 5e TP cable.
2. 44V-57V, 48V DC widely used
3. 350mA maximum,
4. 15.4W maximum per port output
5. 12.95W input deduced power lose on cable distance.
What is the entities of PoE?
PSE: Power Sourcing Equipment
– PoE-enabled switch containing the power injector
PD: Powered Device
– IP phones, Wireless Access Points, IP Cameras, or any other PoE-powered device
How the PoE work with existing Ethernet?
<b>PoE</b> is backwards compatible with existing Ethernet equipment, meaning enabled switches can be mixed with other switches on installed Lans.
<b>PSE</b> tests whether the networked device attached to one of its ports is PoE-capable before attempting to transmit power to it, and monitors the current being drawn. It can also recognize when an attached device is not in use and can shut down the power to that port to save electricity.
