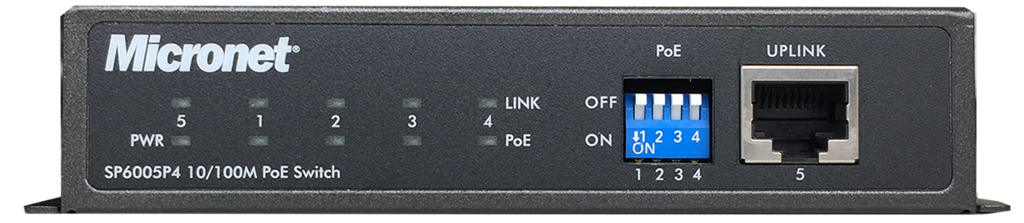

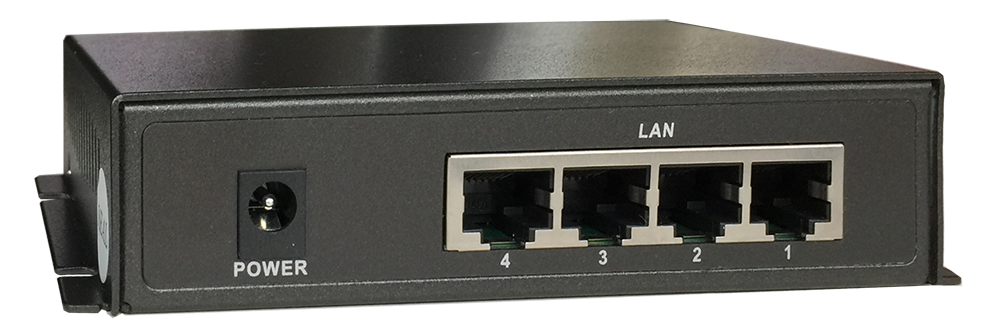

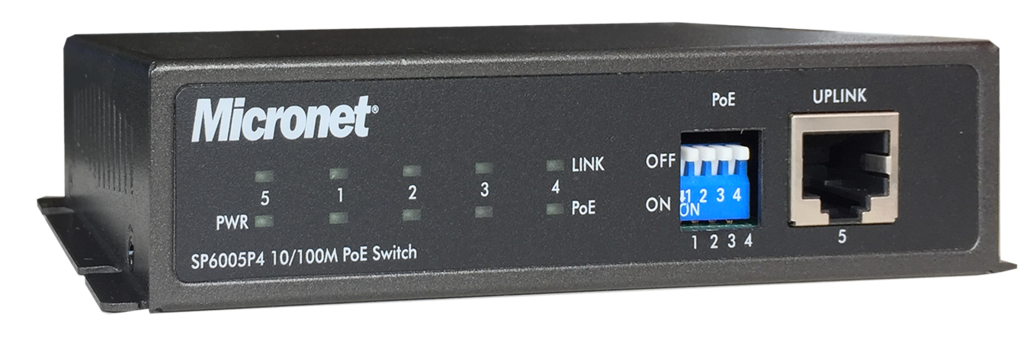

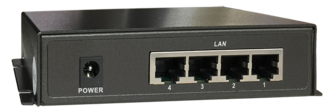

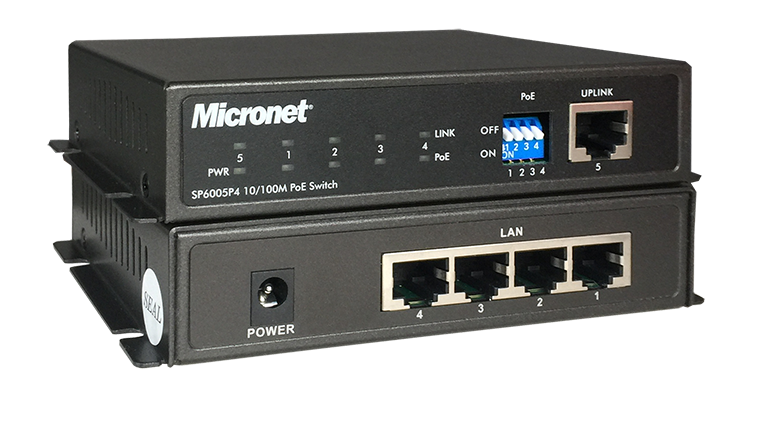

5-Port 10/100M PoE Switch with 4-port PoE, 61.6 Watts
Model No. SP6005P4
- Supports Power over Ethernet on 4 RJ-45 ports of 10/100M
- Provides 61.6W (max) feeding power to 4 PDs: Up to 30W per PoE port
Micronet launches an innovative-designed PoE solution, the SP6005P4 PoE Switch, for SOHO/enterprise and high-power-demand markets. The SP6005P4 supports IEEE 802.3af and pre-802.3at standards for Power over Ethernet (PoE) with the maximum power delivery up to 48 Watts. That makes it suitable to various applications that demand for remote power feeding and meet high level requirement for power. In addition, the SP6005P4 is equipped with DIP switch for per-port PoE enabled/disabled. It effectively helps allocate power for connected devices and enhances network management.
Overview
- Compliant with IEEE 802.3af and pre-802.3at standards
- Supports Power over Ethernet on 4 RJ-45 ports of 10/100M
- Provides 61.6W (max) feeding power to 4 PDs: 15.4W for each
- Able to delivers high power to 1/2/3 PDs: 48/30/20W for each
- Supports power protection as OVP (Over Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), and SCP (Short Circuit Protection)
- Supports robust surge protection
- Per-port PoE enabled/disabled
- LED indicators for PoE activity
