16-Port 10/100M PoE Switch,120 Watts
Model No. SP6016PH
- 16-Port 10/100Mbps Fast Ethernet Switch with 16-port Power over Ethernet (PoE) function
- Complies with IEEE 802.3af/at PoE standards

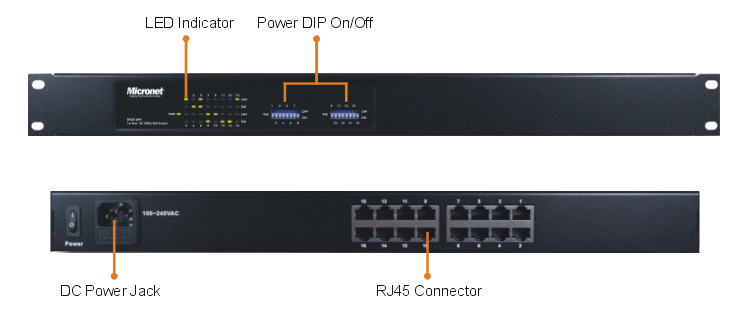

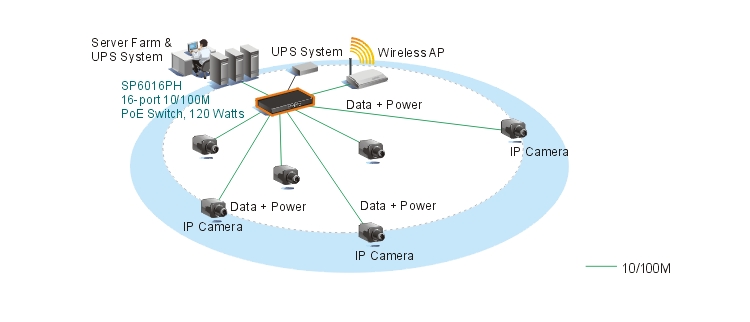

Micronet SP6016PH features a 16-ports 10/100Mbps Fast Ethernet Switch with IEEE 802.3af/at Power over Ethernet interfaces. It supports MDI / MDI-X function on all 10/100Mbps ports and provides Power injection on each LAN port which complies to IEEE 802.3af (15.4 Watts) PoE powered devices. With 16 dip switches, each PoE port can be manually set for On-off control. SP6016PH is supporting up to 15.4 Watts on each LAN port if its port DIP switch is ON. This offers a more flexible and economic PoE option and greatly simplified the tasks of upgrading network equipments. It provides a simple, cost-effective, and reliable network connection for data and power over Ethernet.
Overview
- 16-Port 10/100Mbps Fast Ethernet Switch with 16-port Power over Ethernet (PoE) function
- Complies with IEEE 802.3af/at PoE standards
- Auto-MDI / MDI-X detection on each RJ-45 port
- Support 10/100Mbps N-way auto-negotiation
- 2K MAC address table, automatic source address learning and aging
- Support power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), robust short-circuit protection and surge protection
