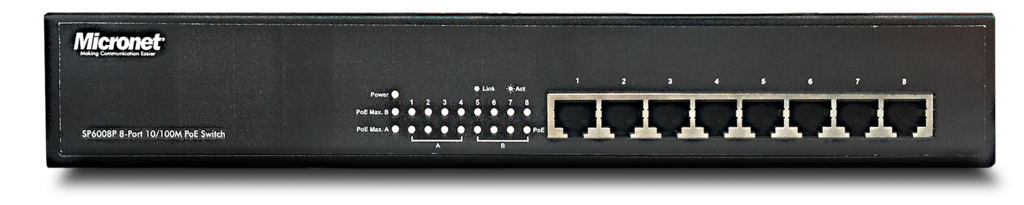

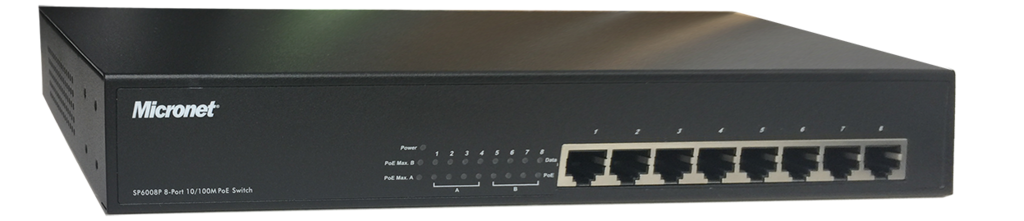

Micronet SP6008P is 8-port 10/100M Desktop Fast Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal to desktop users with limited space. SP6008P features 8 IEEE 802.3af/at Power over Ethernet (PoE) ports supplying up to 15.4 watts per port and maximum 30 watts for one port. This product can convert standard 100~240VAC power into low-voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories. It also features PoE awareness to verify whether the network device receive power is IEEE 802.3af/at compliant, or only the data will be sent through LAN cable.
Overview
- Comply with IEEE 802.3af/at Power over Ethernet (PoE) standard
- 8 x 10/100M Ethernet ports and supplying up to 15.4 watts per port and maximum 30 watts for one port
- Supports IEEE 802.3az Energy-Efficient Ethernet
- Support Non-Blocking Data Forward
- Support Auto-Negotiation and feature of store-and-forward
Specification
Model |
SP6008P |
Standard |
IEEE 802.3af/at
IEEE 802.3 10 BaseT
IEEE 802.3u 100 BaseTX
IEEE 802.3x Flow Control |
Interface |
8 10/100M PoE Ports |
MAC address |
2k entries |
Cable Connections |
10 BaseT Cat 3,4,5 UTP/STP
100M BaseTx CAT 5E, 6 UTP/STP |
Data Transfer Rate |
10/100 Mbps |
Feature |
Number of Ports: 8 PoE/PSE ports
Buffer Memory: 768 bits
Transmission Method: Store and Forward |
Filtering/Forwarding Rate |
100Mbps port-148,800pps
10Mbps port-14,880pps |
MTBF |
362.826 (k.hours)
|
PoE Power current |
120 Watts (Max) |
Environment |
Operating Temperature :0~50°C,
Storage Temperature : -40°C to 70°C
Humidity Operating: 10~90% (Non-Condensing) |
Power |
100-240VAC(Power Surge Protection 2kv) |
Dimension, W x D x H |
280 x 179 x 44,5mm |
Weight |
1.61 kg |
Emission |
CE |
Ordering Information
SP6008P: 8-port 10/100M PoE Switch with 8-port PoE, 120 Watts
